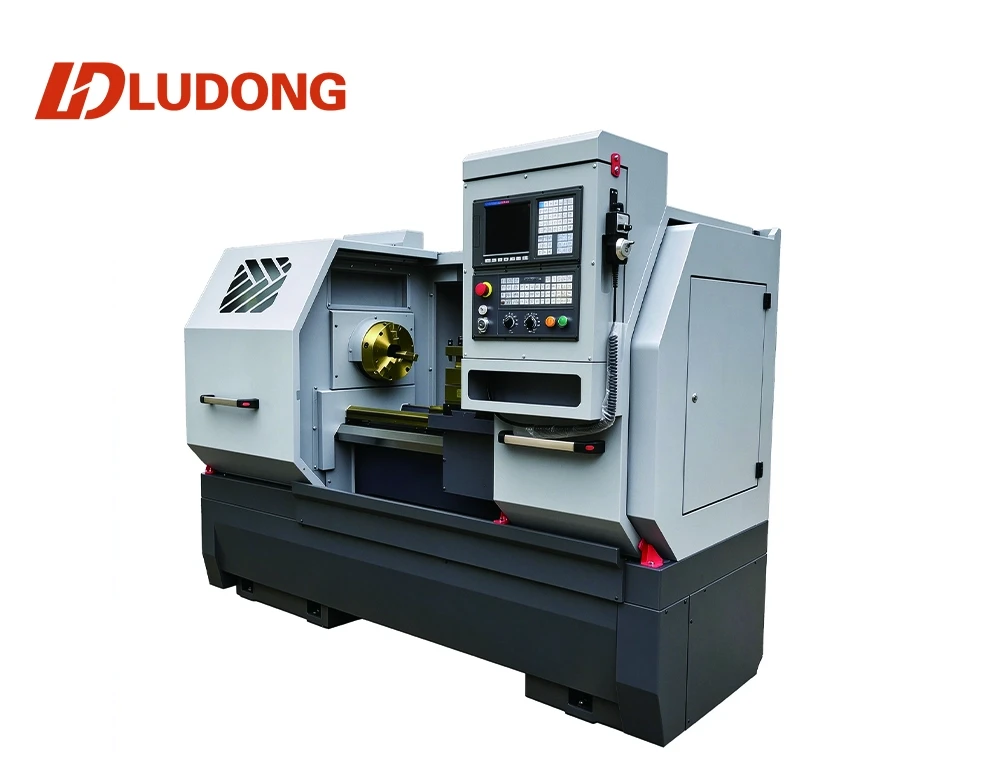

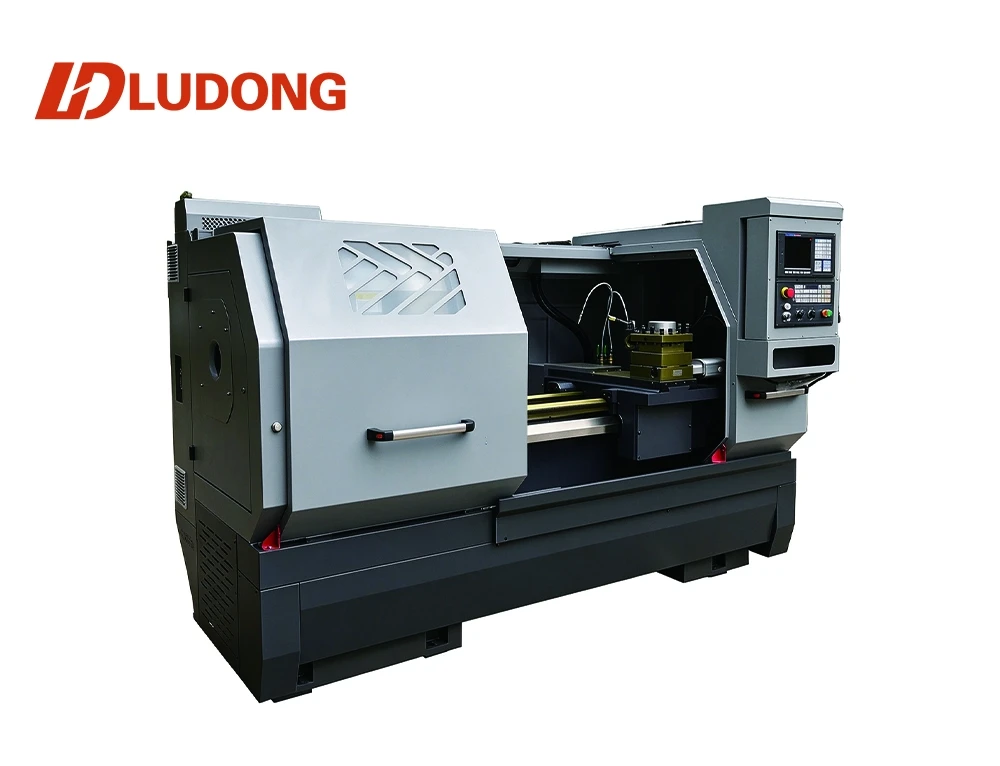

CNC LATHE

CK6150B/C/H Series

Machine Features

1.The bed and bed legs are integrally cast with resin sand and subjected to aging treatment. The guideways are hardened by super-audio frequency quenching, and the carriage is lined with plastic.

2.High-rigidity spindle system with large bore φ82mm, three-point support and four sets of bearings.

3.Precision ground gears; 45° helical teeth deliver high torque with low operating noise.

4.A coolant return trough is designed along the edge of the carriage surface to prevent cutting fluid overflow.

5.Enlarged slide base provides powerful performance for Z-axis travel.

6.Customization available: 105mm spindle bore and elevated headstock for maximum swing diameter up to 630mm.

Applications

Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.

REQUEST A QUOTE

Product Description

Headstock Advantages

Precision machining of hole system
Precision machining of shaft system
Precision gear machining
Comprehensive precision assembly
Ensures high rigidity and high accuracy
Lubrication maintenance, leakage prevention and noise reduction

Hard Guideway Feed Advantages

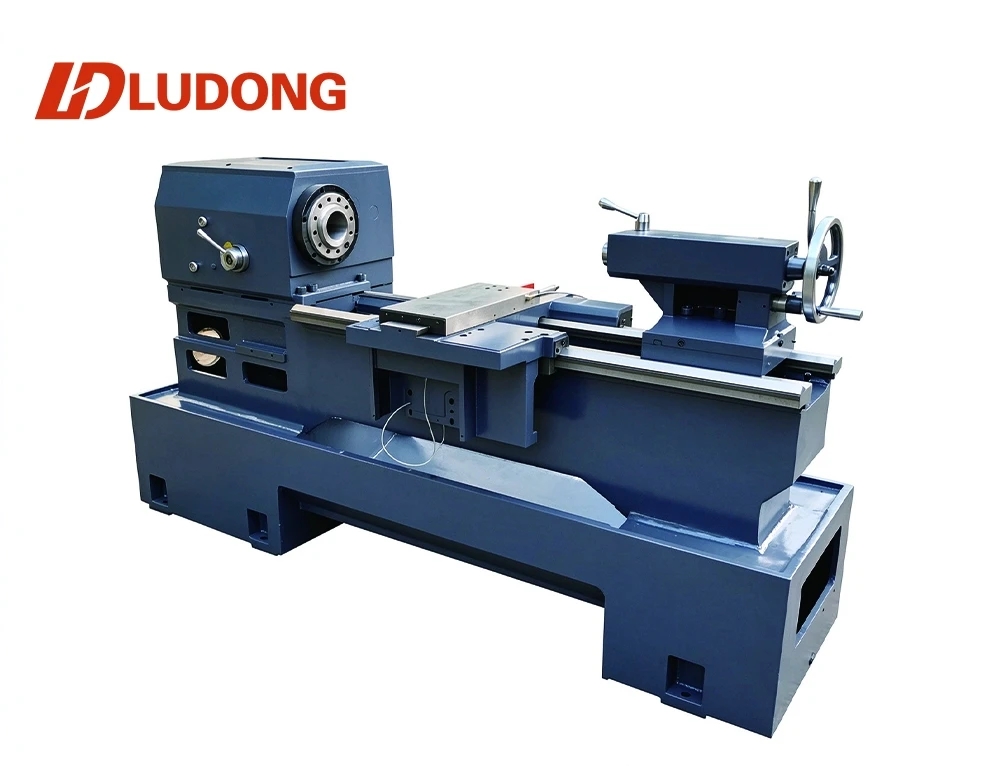

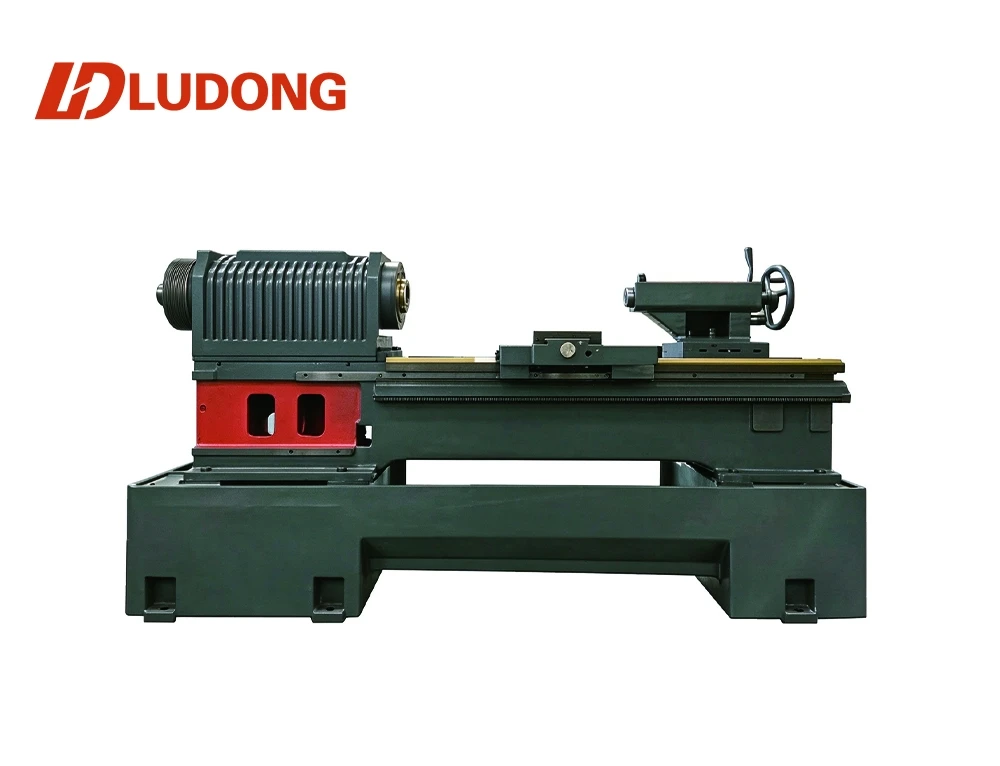

High-grade precision cast bed
Surface quenched for high hardness and wear resistance
Precision scraping fitting for saddle and cross slide
Guideway lined with plastic, with oil storage grooves; form & position tolerances strictly compliant
Strictly compliant form & position tolerances
Finely mated sliding surfaces for smooth and precise movement, minimizing stick-slip, excellent dynamic performance, high rigidity and heavy load capacity

Technical Parameters

Working Range
Item	Unit	CK6150B	CK6150C	CK6150H
Max. Swing over Bed	mm	φ500(Custom: φ630)	φ500(Custom: φ630)	φ500(Custom: φ630)
Max. Swing over Cross Slide	mm	φ280(Custom: φ400)	φ280(Custom: φ400)	φ280(Custom: φ400)
Distance Between Centers	mm	500/1000/1500/2000/3000	500/1000/1500/2000/3000	500/1000/1500/2000/3000
Max. X-axis (Cross) Travel	mm	295	295	295
Max. Z-axis (Longitudinal) Travel	mm	500/1000/1500/2000/3000	500/1000/1500/2000/3000	500/1000/1500/2000/3000
Bed Guideway Width	mm	400	400	400
Bed Structure		Integrated Bed (Separated Bed Leg Customizable)	Integrated Bed Leg (Separated Bed Leg Customizable)	Integrated Bed Leg
X/Z Servo Motor Torque	Nm	6/10	6/10	6/10
X/Z Rapid Feed Rate	m/min	6/8	6/8	6/8
X/Z Ball Screw Specification		3206/4010	3206/4010	2505/4010
Headstock
Spindle Nose Type	type	A2-8	A2-8	A2-8
Spindle Bore	mm	φ82	φ105	φ82(Custom: φ105 bore)
Spindle Taper		Metric No.90 (1:20)	1:20	Metric No.90 (1:20)
Spindle Speed	rpm	Low: 45-260; Medium:140-800; High:280-1600	Low:12-100; Medium:70-300; High:260-1200	1600(High Speed)
Chuck		Manual 3-jaw Chuck φ250	Manual 3-jaw Chuck φ320	Manual 3-jaw Chuck φ250
Tailstock (Reinforced Tailstock)
Tailstock Quill Diameter	mm	φ75	φ75	φ75
Tailstock Quill Taper	MT	No.5	No.5	No.5
Max. Tailstock Quill Travel	mm	150	150	150
Accuracy Standard - (GB/T 25659.1-2010 《Simplified numerically controlled horizontal turning machines — Part 1: Testing of the accuracy》)
Machining Accuracy		IT6-IT7	IT6-IT7	IT6-IT7
Workpiece Roundness	mm	≤0.008	≤0.008	≤0.008
Workpiece Cylindricity / Length	mm	≤0.02/300	≤0.02/300	≤0.02/300
Workpiece Flatness / Diameter	mm	≤0.025/φ300	≤0.025/φ300	≤0.025/φ300
Workpiece Surface Roughness	μm	≤Ra3.2	≤Ra3.2	≤Ra3.2
X-axis / Z-axis Repeat Positioning Accuracy	mm	X-axis≤0.01 / Z-axis≤0.015	X-axis≤0.01 / Z-axis≤0.015	X-axis≤0.01 / Z-axis≤0.015
Electrical System
Main Motor Power	kw	7.5kw Servo Motor	11KW Conventional Motor	7.5kw Servo Motor
Tool Post	type	Vertical 4-position Electric Tool Post	Vertical 4-position Electric Tool Post	Vertical 4-position Electric Tool Post
Tool Shank Cross Section	mm	25×25	25×25	25×25
Voltage	V	AC380	AC380	AC380
Voltage Fluctuation Range		-10~+10%	-10~+10%	-10~+10%
Frequency	Hz	50±2	50±2	50±2
Total Power Capacity	KVA	20	20	20
General Specifications
Machine Overall Dimension	mm	2700(L)×1465(W)×1780(H)	2700(L)×1465(W)×1780(H)	2700(L)×1465(W)×1780(H)
Packing Case Dimension	mm	2800(L)×1565(W)×2020(H)	2800(L)×1565(W)×2020(H)	2800(L)×1565(W)×2020(H)
Net Weight	kg	2600kg~4700kg	2700kg~5000kg	2500kg~4600kg
Gross Weight (Including Base Skid)	kg	2800kg~5000kg	2900kg~5300kg	2700kg~4800kg
Reference Standard: GB/T25659.1-2010. The above overall dimensions and weights refer to CK6150-1000. For other models, please refer to the technical agreement.
