1.Hydraulic drive, manual valve operation or PLC control.
2.Bale‑discharging: "turn‑out", "push‑out", "forward‑out‑" & manual discharging
3.Options for different force, press box size, bale shape& size.
BALING PRESS SERIES

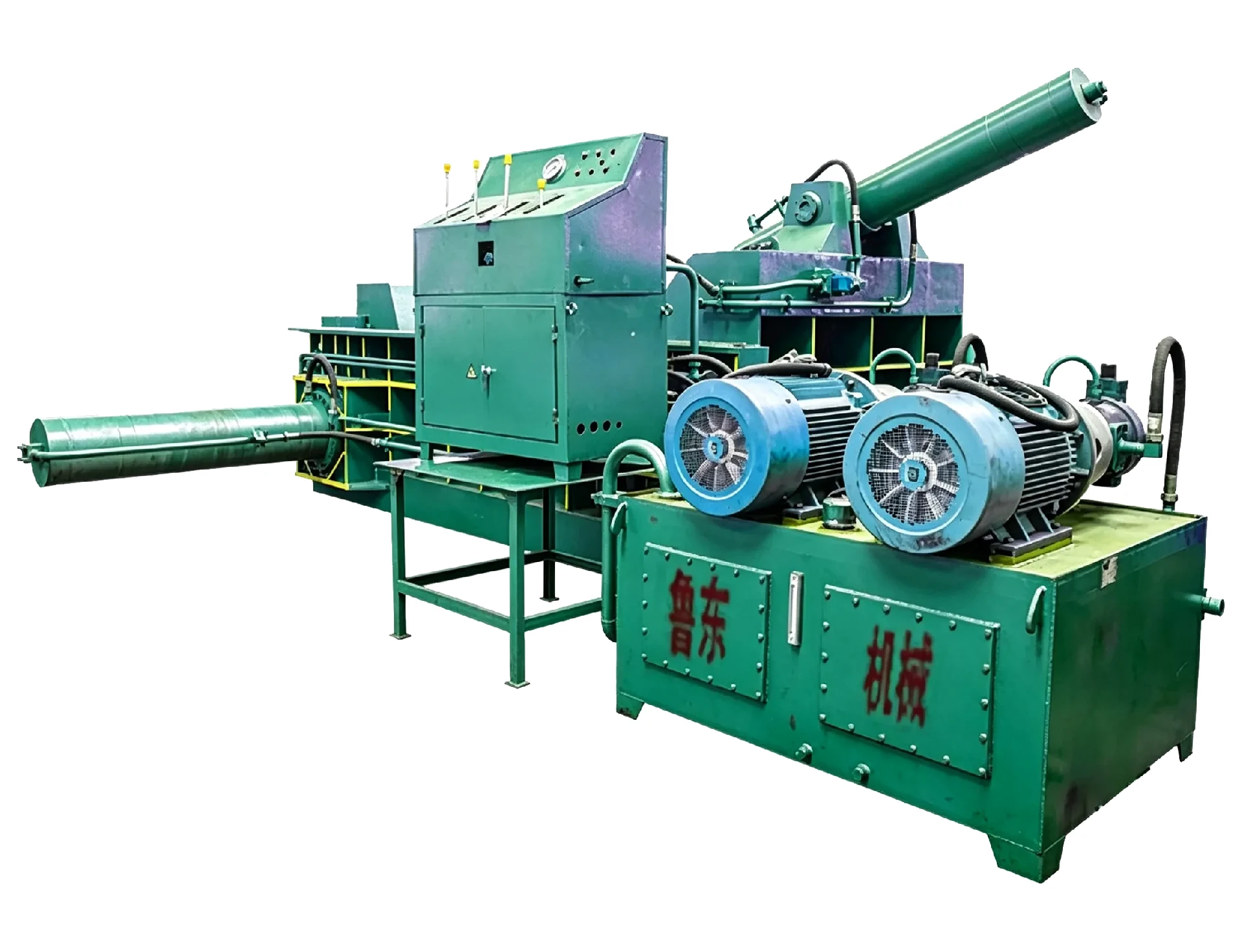

Y81 Series Hydraulic Metal Baler
Product Advantages
Applications
Used for all kinds of metal scrap (scrap, shavings, scrap steel, scrap aluminum, scrap copper, waste stainless steel, scrap cars, etc.) extrusion into cuboid, octagonal body, cylinder and other shapes of qualified charge, mainly suitable for steel mills, recycling industry, and nonferrous metal smelting industry, ferrous metal.
Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.
Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F‑125 | 125 | 1200*700*600 | 300*300 | 50‑70 | 15 |
| Y81F‑160 | 160 | 160*1000*800 | 400*400 | 100‑150 | 22 |
| Y81F‑200 Double Main Cylinder | 200 | 1800*1400*800 | 260/300 Octagonal | 50‑100 | 37 or 44 |
| Y81F‑250 Double Main Cylinder | 250 | 2000*1750*1000 | 500*500 | 250‑450 | 60 |
| Y81F‑250 Double Main Cylinder | 250 | 2500*2000*1000 | 500*500/600*600 | 300‑500 | 60 |
| Y81F‑280 Double Main Cylinder | 280 | 2600*2300*1000 | 500*500/600*600 | 350‑550 | 60 |
| Y81F‑315 Double Main Cylinder | 315 | 3000*2500*1200 | 600*600 | 400‑700 | 90 |
| Y81F‑315 Double Main Cylinder | 315 | 3500*3000*1200 | 600*600/700*700 | 600‑1000 | 90 |
| Y81K‑315 Double Main Cylinder | 315 | 4000*3000*1200 | 600*600/700*700 | 800‑1200 | 90 |
| Y81F‑400 Double Main Cylinder | 400 | 3500*3000*1200 | 600*600/700*700 | 800‑1300 | 90 |
| Y81K‑400 Double Main Cylinder | 400 | 3000*2500*1200 | 600*600/700*700 | 900‑1300 | 90 |
| Y81F‑500 Double Main Cylinder | 500 | 3500*3000*1200 | 600*600/700*700 | 900‑1500 | 110 |
| Y81K‑630 Double Main Cylinder | 315 | 3500/400*3000*1300 | 600*600/700*700 | 1100‑1700 | 110 |
| Y81K‑800 Double Main Cylinder | 315 | 3500/400*3000*1300 | 600*600/700*700 | 1200‑1800 | 180 |
| Y81F‑1000 Double Main Cylinder | 315 | 3500/400*3000*1300 | 600*600/700*700 | 1300‑1900 | 165 |
| Y81K‑1500 Double Main Cylinder | 400 | 3500*3000*1400 | 700*700 | 1400‑2100 | 275 |
| Y81F‑1600 Double Main Cylinder | 400 | 3500*3000*1400 | 700*700 | 1500‑2200 | 300 |
| Y81K‑2000 Double Main Cylinder | 2000 | 3500*3000*1500 | 700*700 | 1800‑2500 | 375 |
Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Any changes shall be subject to the final interpretation of our company.
Product Details
