CRUSHING AND SHEARING EQUIPMENT SERIES

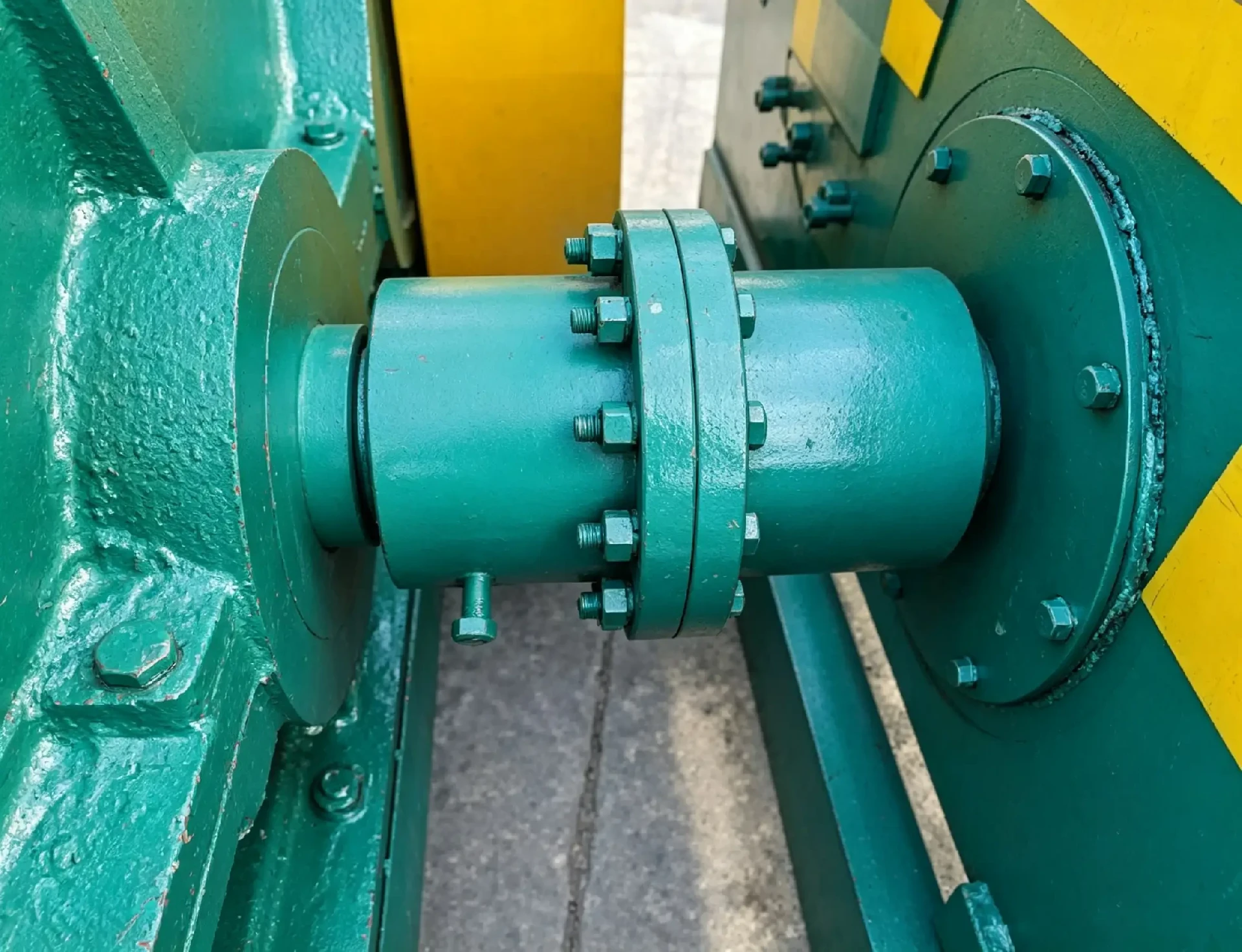

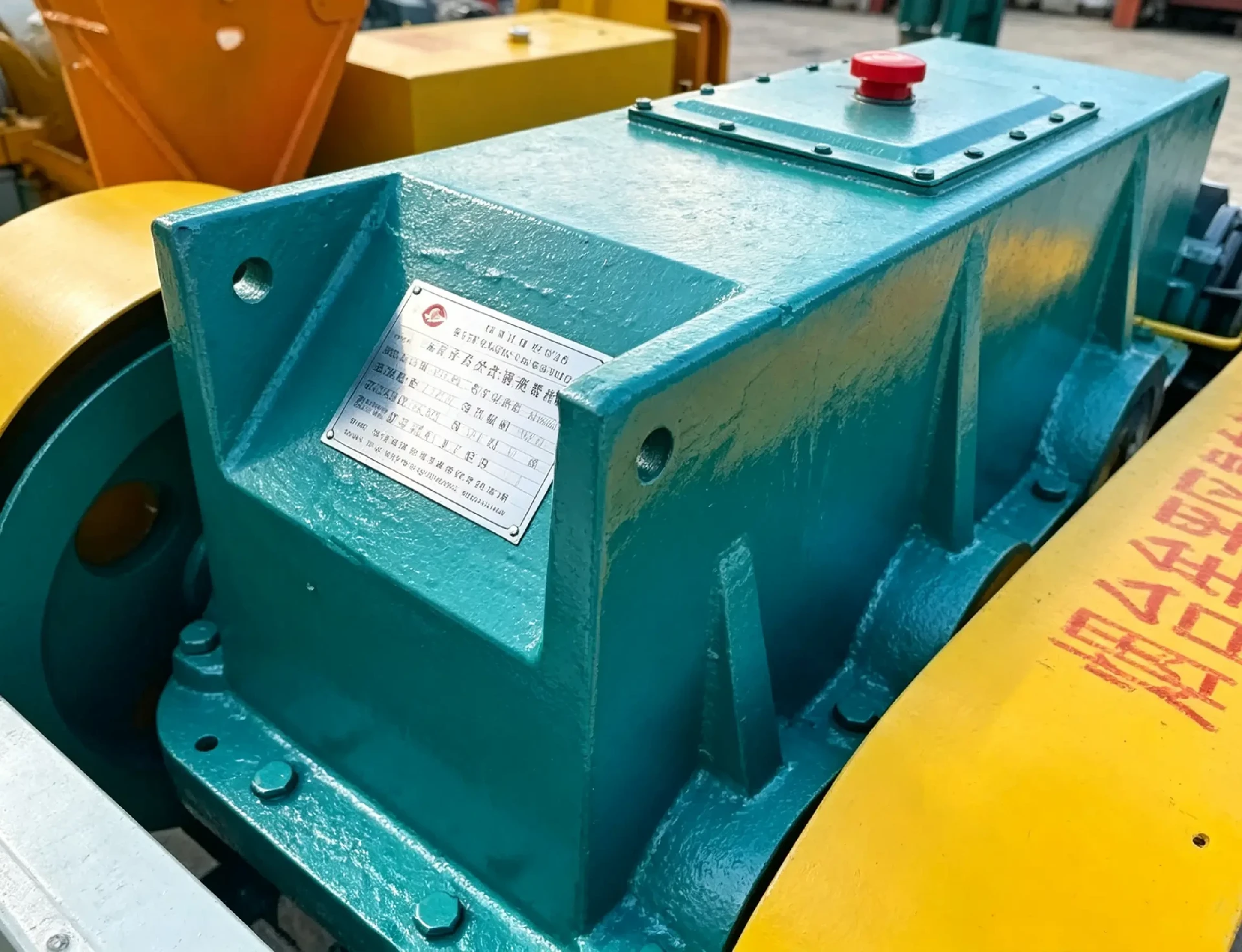

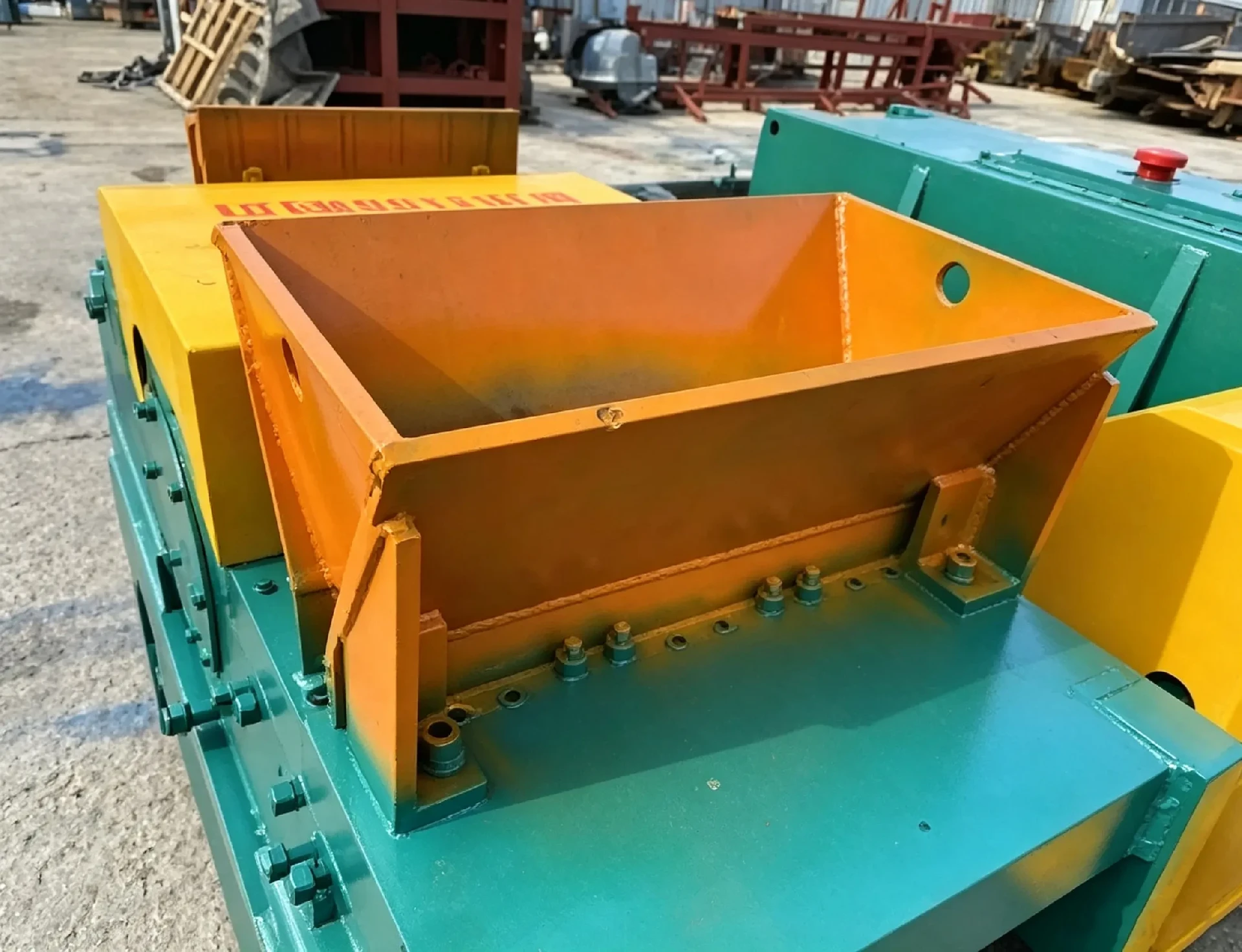

1.Super wide feed port, heavy duty reducer torque strengthening, heavy duty coupling.
2.Heavy duty rolling bearing, low resistance compared with the same type of cutting machine, load can greatly reduce power consumption.
3.Multifunctional three‑in‑one cutting, with cross cutting, vertical cutting, side cutting, with weighted head bottom.
4.Machine equipped with H13 blade, fast speed, large output, high efficiency, one machine three uses.

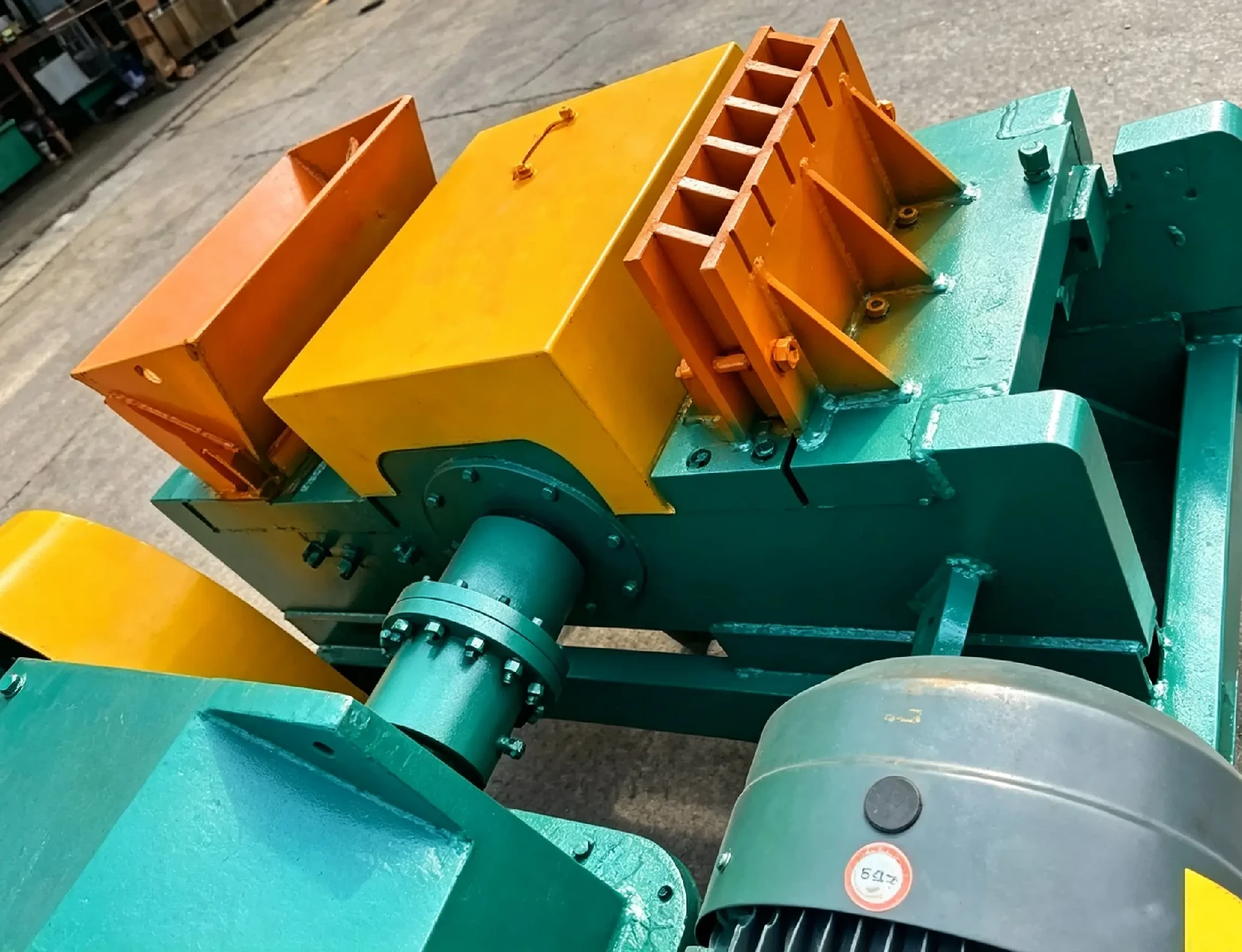

The steel bar granulator is used for common carbon steel, waste rebar steel, hot rolled round steel, flat steel, square steel, round pipe and so on in all kinds of reinforced concrete produced in construction engineering. It has the characteristics of high shear frequency, fast speed and large output.
Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.
| Item | Parameter | Value |
|---|---|---|
| Yield(t/h) | 3‑5T | |
| Cutting Frequency | 40 cuts/min | |
| Vertical Cut Specification | Φ35mm | |
| Crosscut Specifications | Φ20mm | |
| Electric Motor | Specification | YX2‑200L‑4/37KW |
| Power | 37KW | |
| Rated Speed | 1475r/min | |
| Reducer Speed Ratio | 23 : 34 | |
Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Any changes shall be subject to the final interpretation of our company.
