CRUSHING AND SHEARING EQUIPMENT SERIES

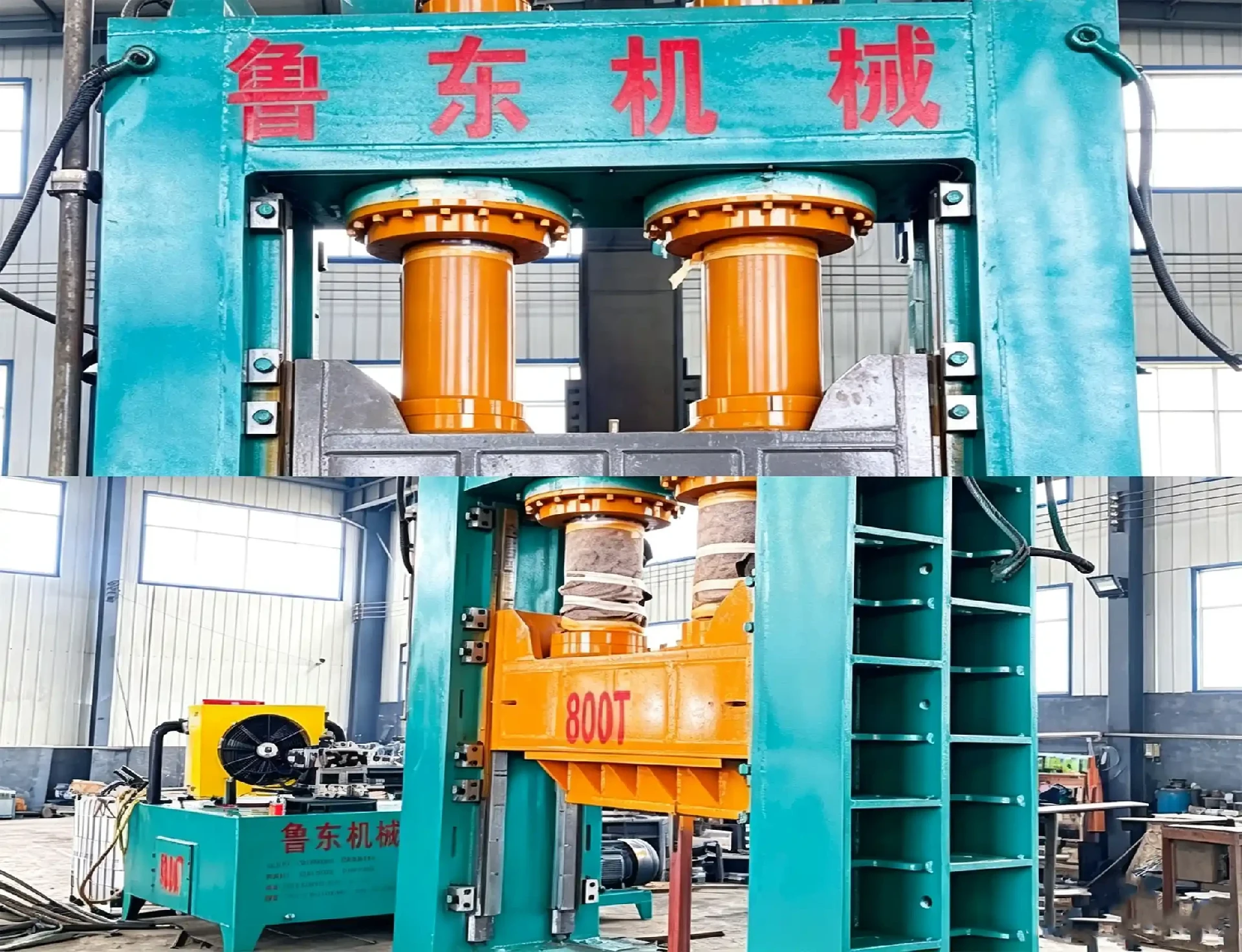

1.Heavy duty gantry frame, high strength large capacity cylinder, upside down installation.
2.Adopt double motor, double oil pump and oil inlet filter.
3.Heavy duty centralized hydraulic valve block assembly, can realize the second pressure operation.
4.Remote control can be operated remotely, safe and reliable.
It is used for the crushing of cast iron and aluminum parts, such as engine housing, reducer box, gearbox casting housing, waste machine tools, pig iron radiator, cast aluminum wheel hub and other kinds of waste castings.
Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.
| Item | Parameter | Value |
|---|---|---|
| Worktable Area | 2000*1200*600mm | |
| Maximum Shearing Force | 8000kn | |
| Cutting Frequency | 1 cut/min | |
| Electric Motor | Specification | 200L‑4‑30KW |
| Power | 30KW*2 | |
| Rated Speed | 1475r/min | |
| Hydraulic Pump | Specification | G160YCY14‑1B |
| Nominal Displacement | 160 ml/r*2 | |
Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Any changes shall be subject to the final interpretation of our company.
