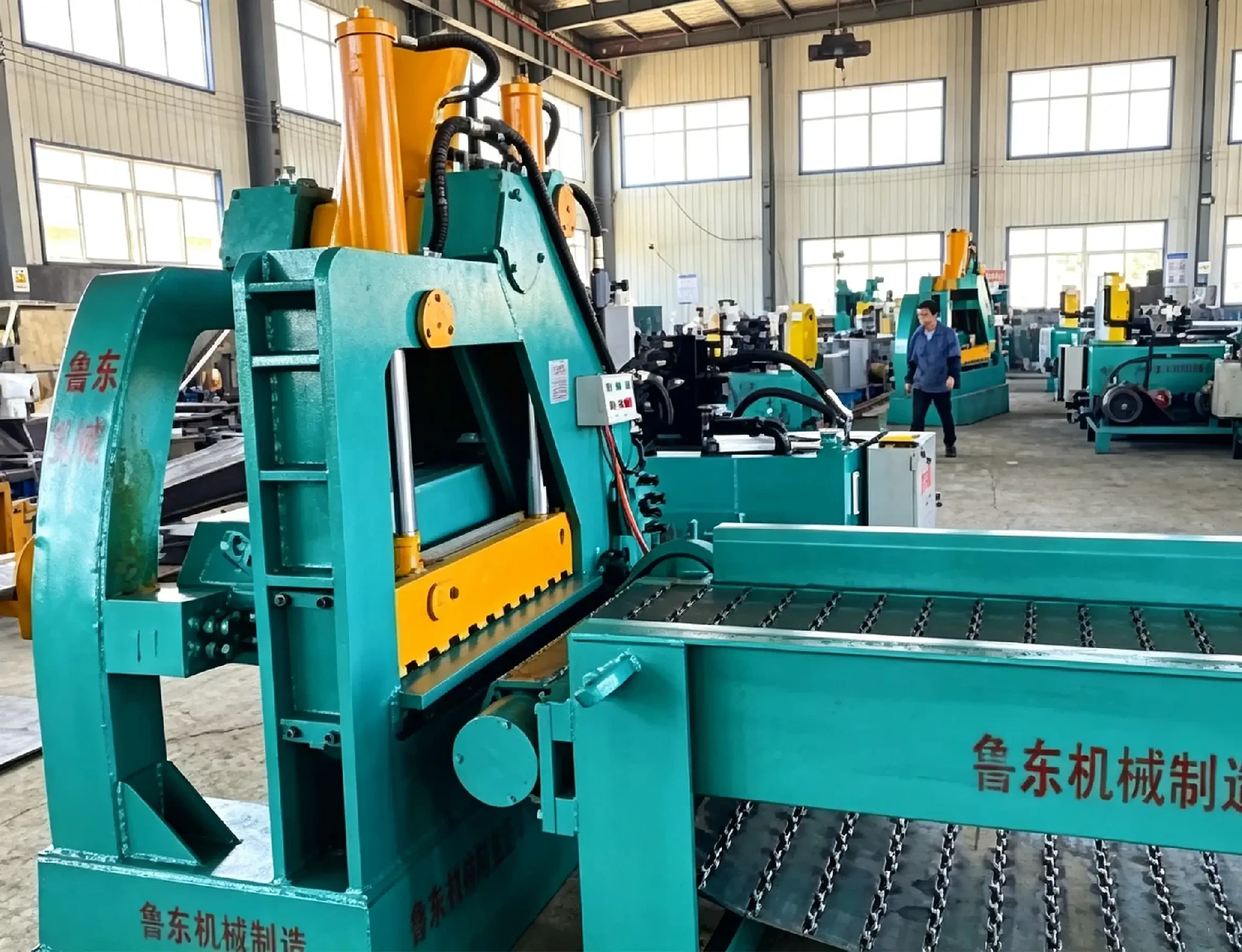

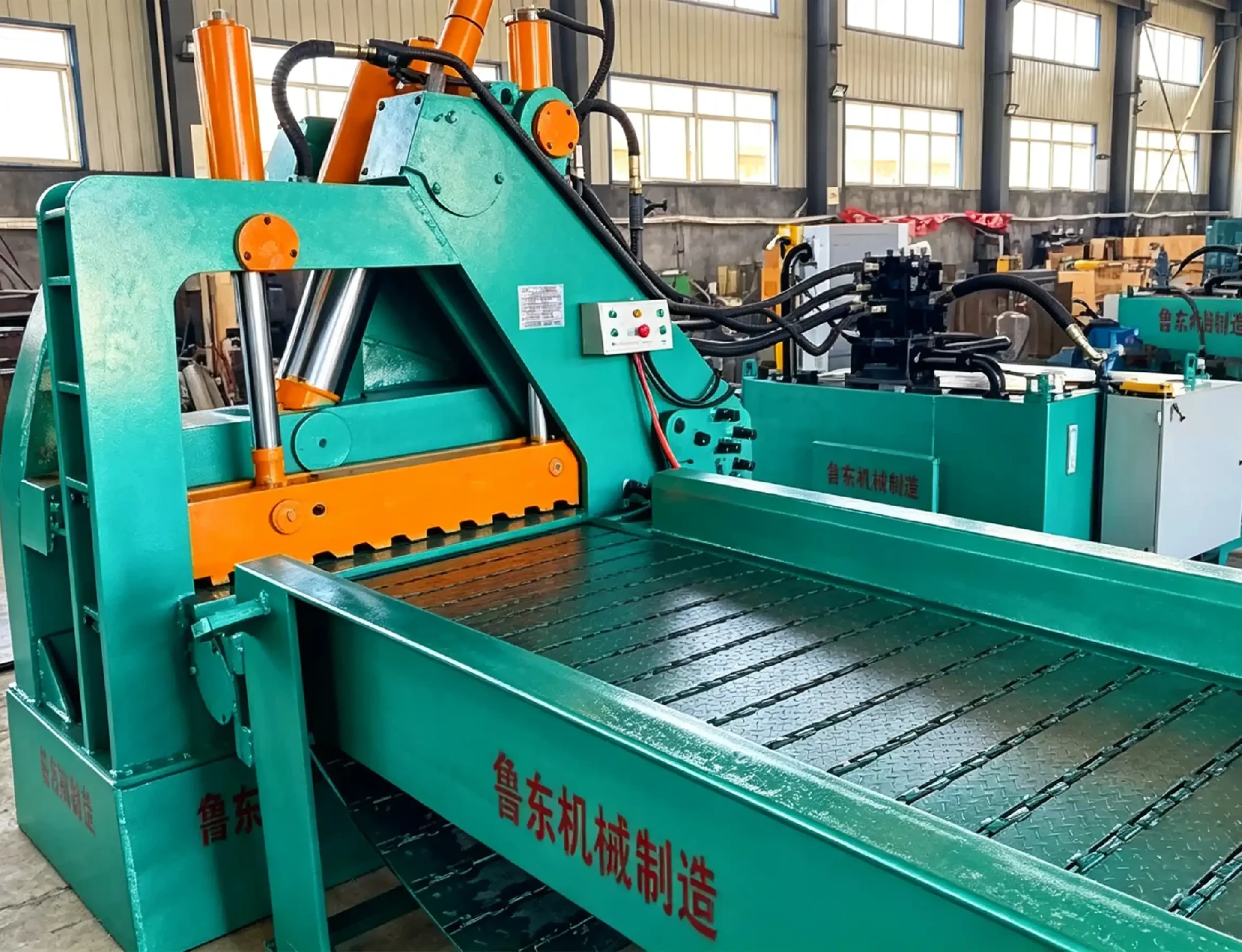

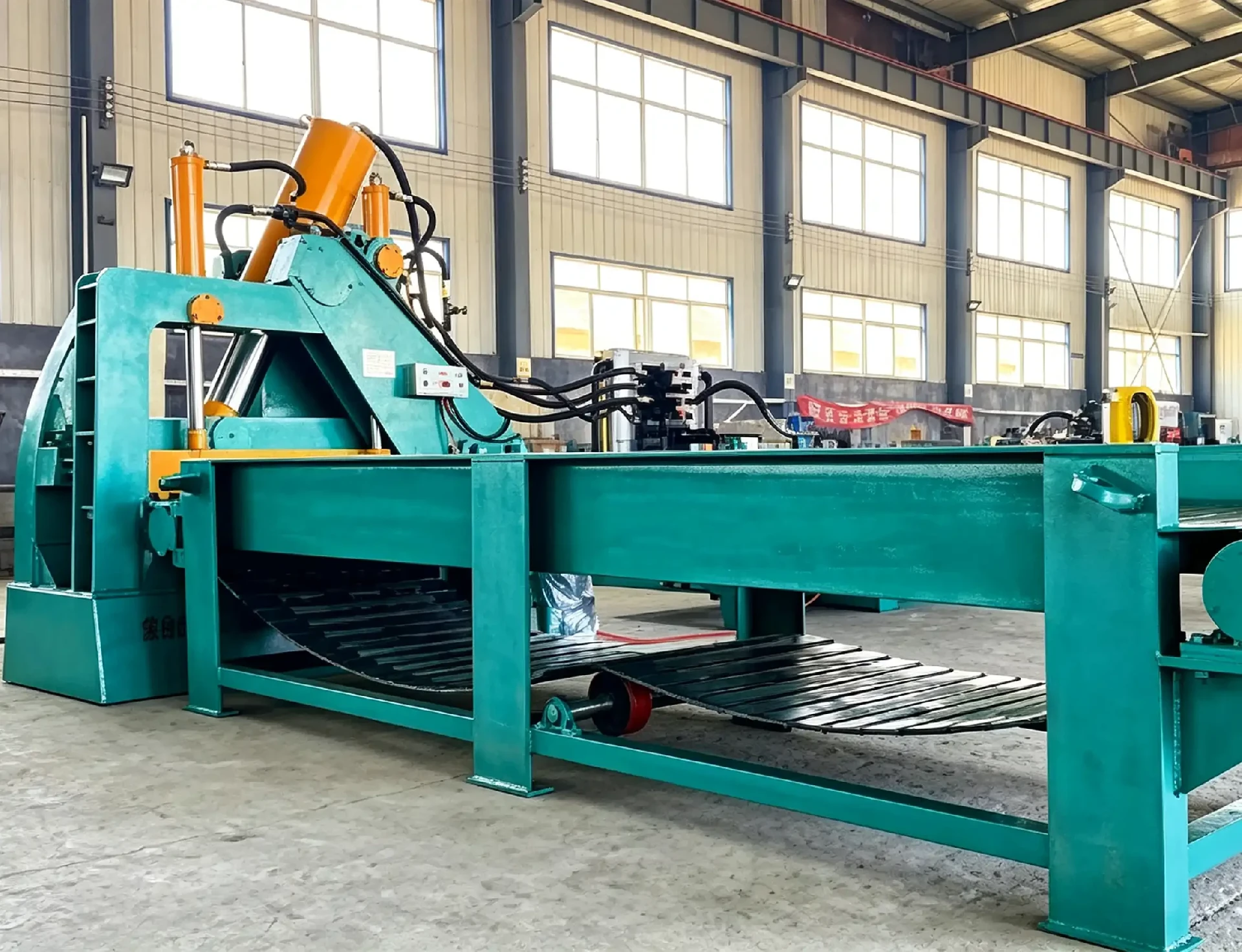

ALLIGATOR SHEAR SERIES
1.weighted fuselage, using double gantry frame,double pressing cylinder, vertical pressing design
2.Heavy conveyor belt to realize continuous feeding,reduce labor intensity, improve output.
3.Optional new centralized hydraulic valve block as‑sembly, can realize the second pressure operation.
Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.
| Item | Parameter | Value |
|---|---|---|
| Shearing width | 1200mm | |
| Maximum Shearing Force | 4500kn | |
| Cutting Frequency | 0‑12 cuts/min | |
| Electric Motor | Specification | YX3‑225S‑4/37KW |
| Power | 37KW | |
| Rated Speed | 1475r/min | |
| Hydraulic Pump | Specification | G250YCY14‑1B |
| Nominal Displacement | 250 ml/r | |
| Conveyor | Specification | (4 m/5m/6m )*1 m |
| Power | 7.5KW | |
Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Any changes shall be subject to the final interpretation of our company.
