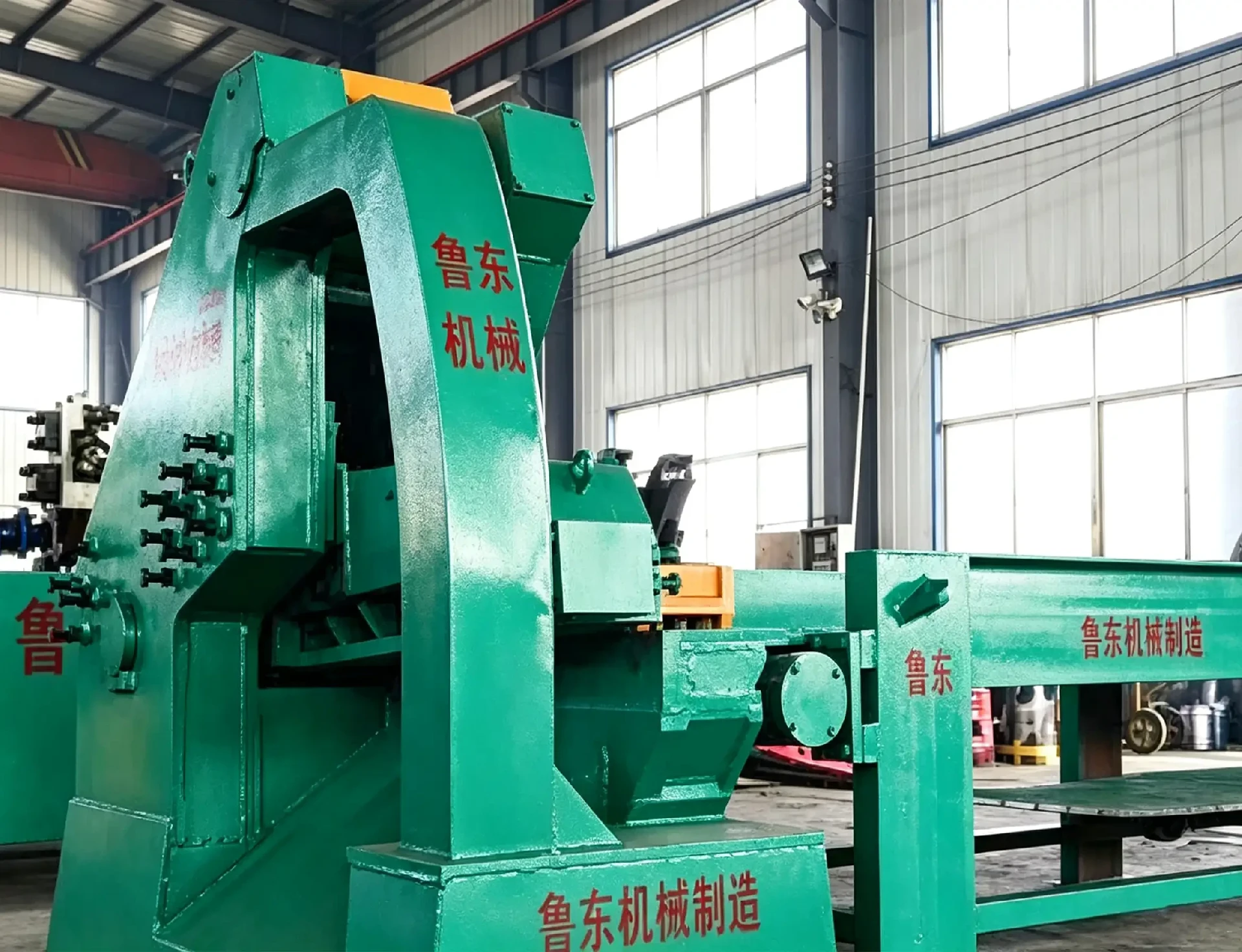

ALLIGATOR SHEAR SERIES
1.Optional new centralized hydraulic valve block assembly, can realize the second pressure operation.

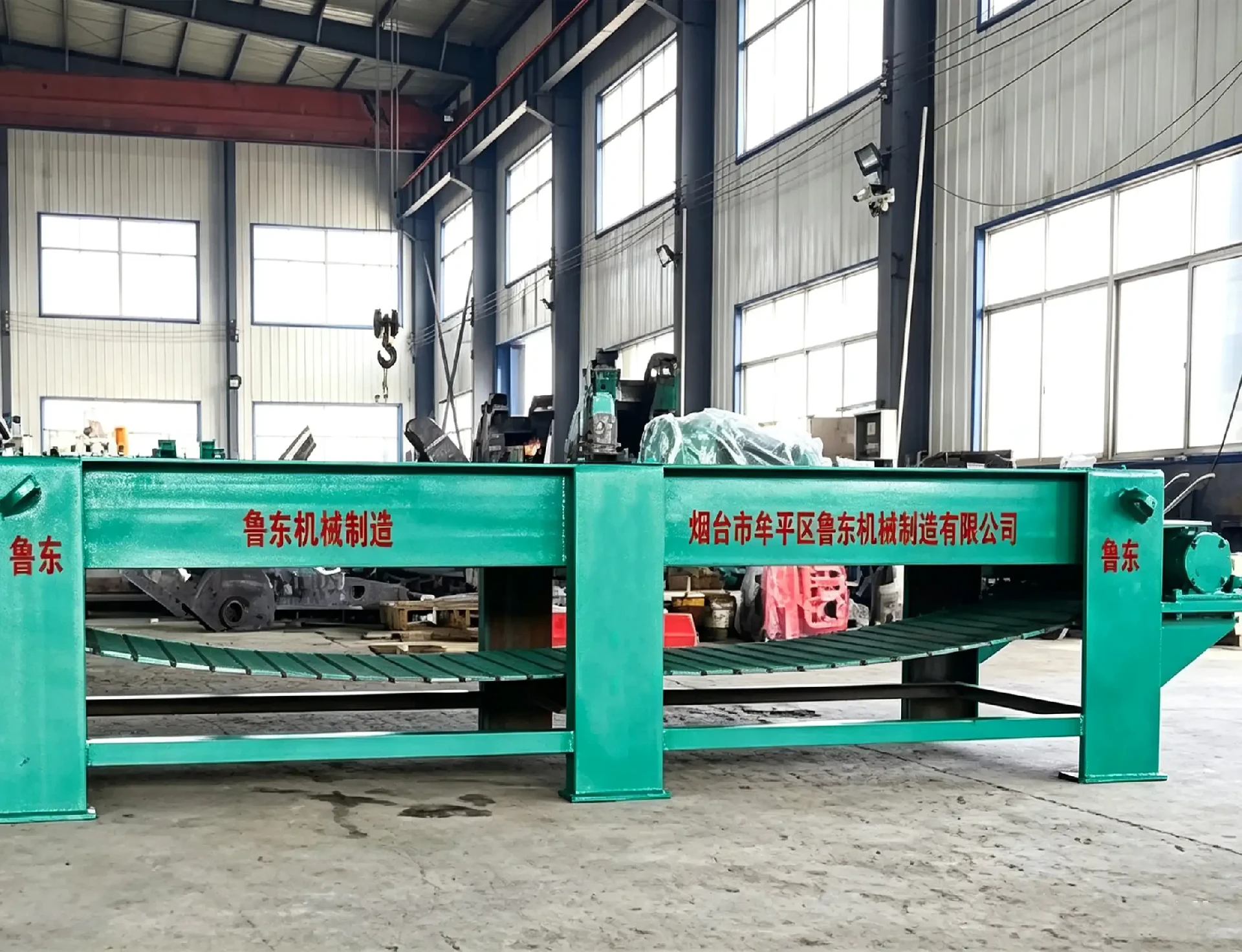

2.Heavy conveyor belt to realize continuous feeding, reduce labor intensity, improve output.
3.Shear length adjustable, with remote control operation.
Mainly for all kinds of metal profiles, metal structure parts for cold shear, processing into qualified charge, suitable for small and medium‑sized steel scrap processing base, smelting and casting enterprises, scrap automobile dismantling enterprises in the field of application.
Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.
| Item | Parameter | Value |
|---|---|---|
| Shearing width | 1200mm | |
| Maximum Shearing Force | 4500kn | |
| Cutting Frequency | 0‑12 cuts/min | |
| Electric Motor | Specification | YX3‑225S‑4/37KW |
| Power | 37KW | |
| Rated Speed | 1475r/min | |
| Hydraulic Pump | Specification | G250YCY14‑1B |
| Nominal Displacement | 250 ml/r | |
| Conveyor | Specification | (4 m/5m/6m )*1 m |
| Power | 7.5KW | |
Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Any changes shall be subject to the final interpretation of our company.
