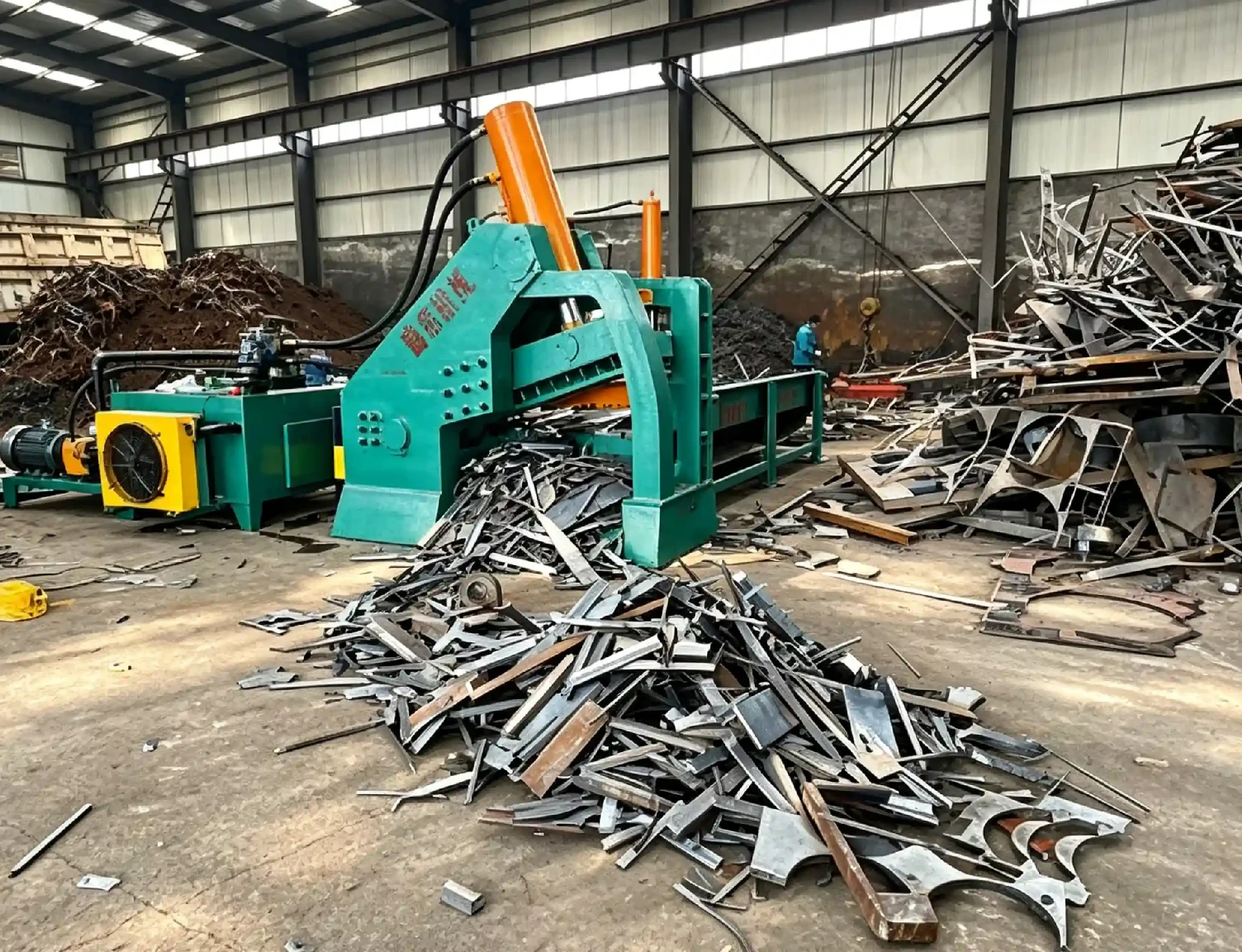

ALLIGATOR SHEAR SERIES
1.Weighted fuselage, double gantry frame, double pressing cylinder, vertical pressing design.
2.Double motor, double oil pump, oil inlet filter, air‑cooled radiator.
3.Centralized heavy‑duty cartridge assembly is used to realize secondary pressurization operation.
4.The conveyor adopts integral welding process, and the chain plate is made of 100*15 thick flat steel.
Used FOR medium AND LARGE STEEL SCRAP base, to cut the medium steel scrap, metal structure parts, with the large GANtry shear secondary shear work. Conveyor belt adopts chain plate feeding way, processing material type variety.
Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.
| Item | Parameter | Value |
|---|---|---|
| Shearing width | 1500mm | |
| Maximum Shearing Force | 5500kn | |
| Cutting Frequency | 0‑12 cuts/min | |
| Electric Motor | Specification | YX3‑200L‑4/30KW |
| Power | 30KW*2 | |
| Rated Speed | 1475r/min | |
| Hydraulic Pump | Specification | G160YCY14‑1B |
| Nominal Displacement | 160 ml/r*2 | |
| Conveyor | Specification | (4 m/5m/6m )*1.2 m |
| Power | 7.5KW | |
Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Any changes shall be subject to the final interpretation of our company.
