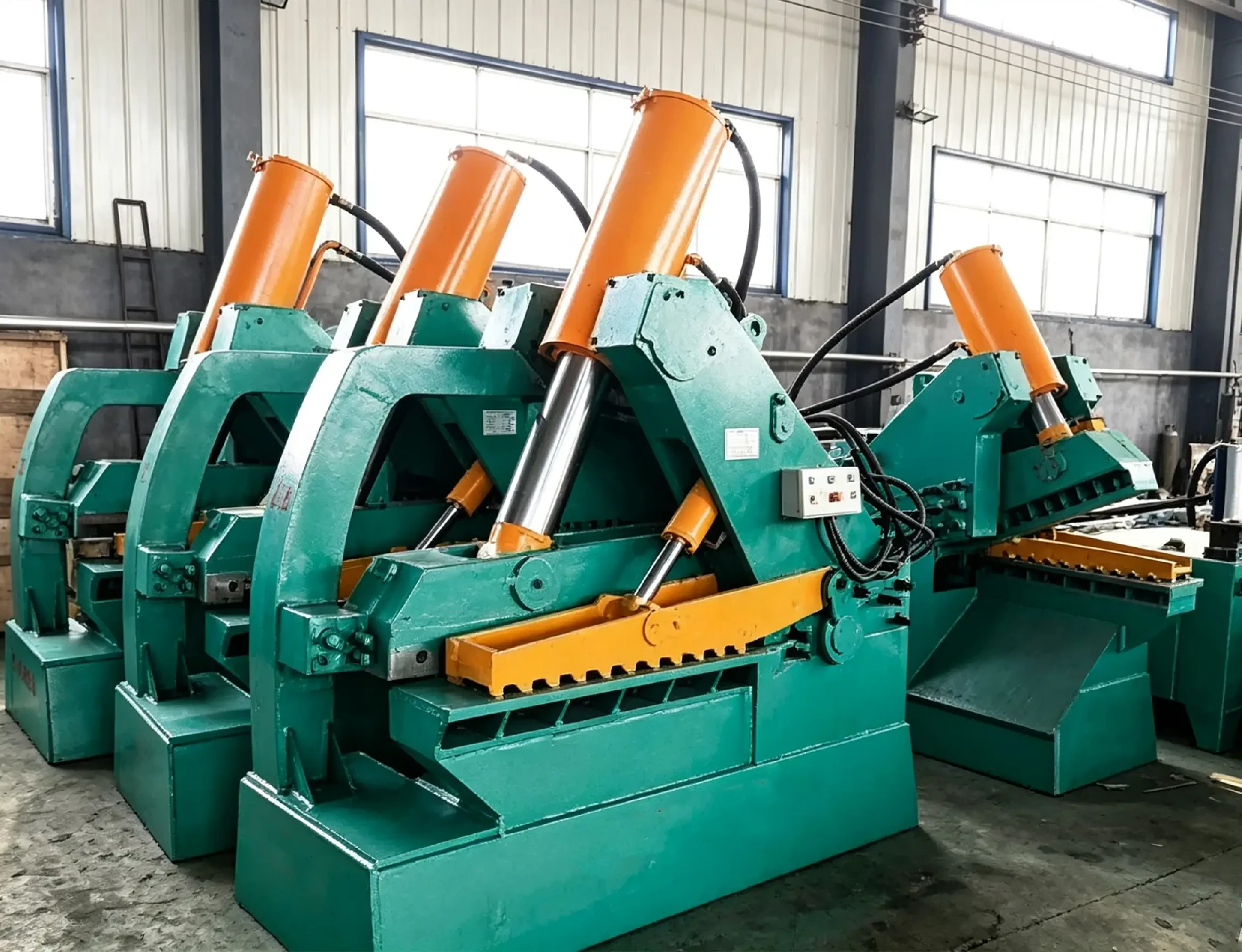

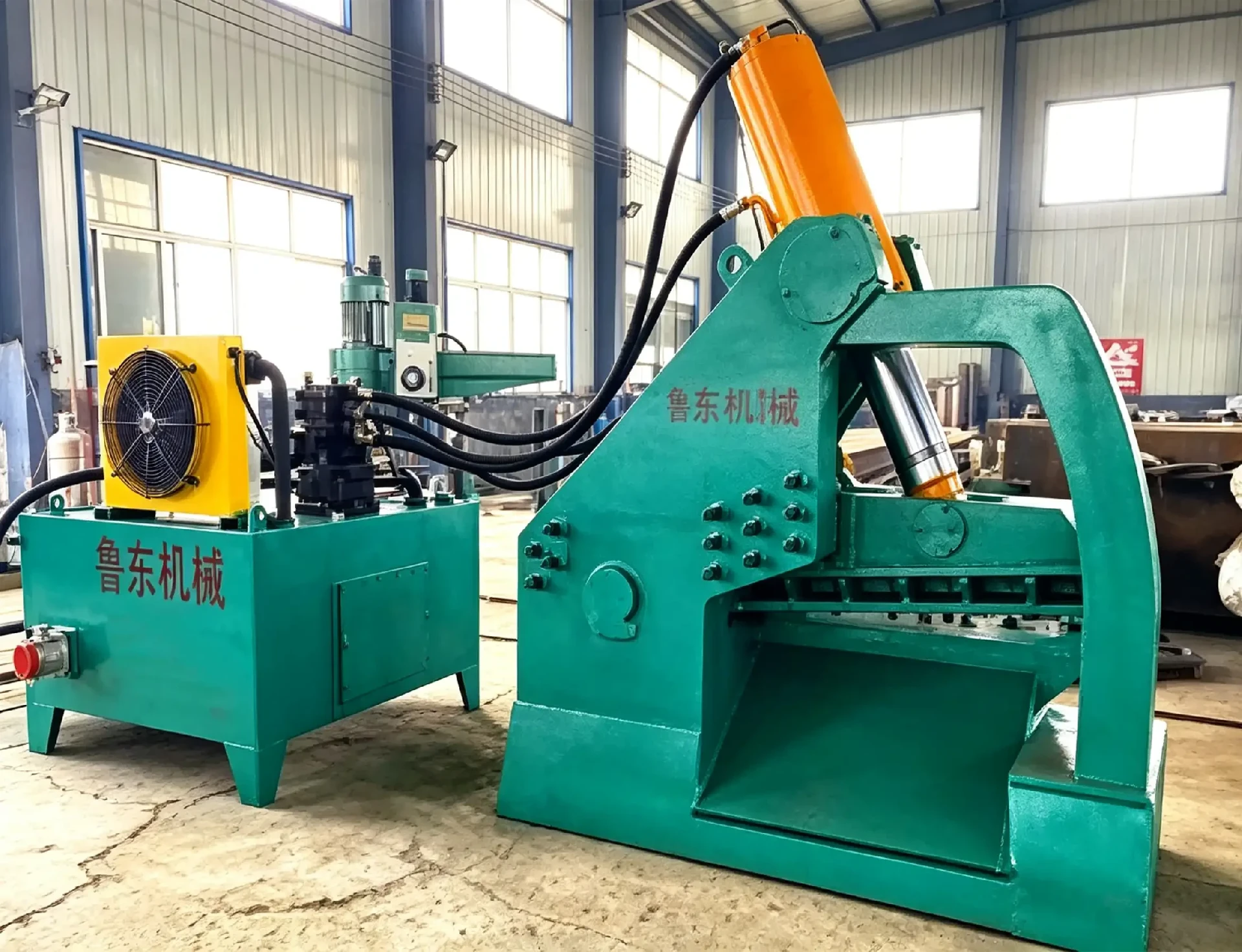

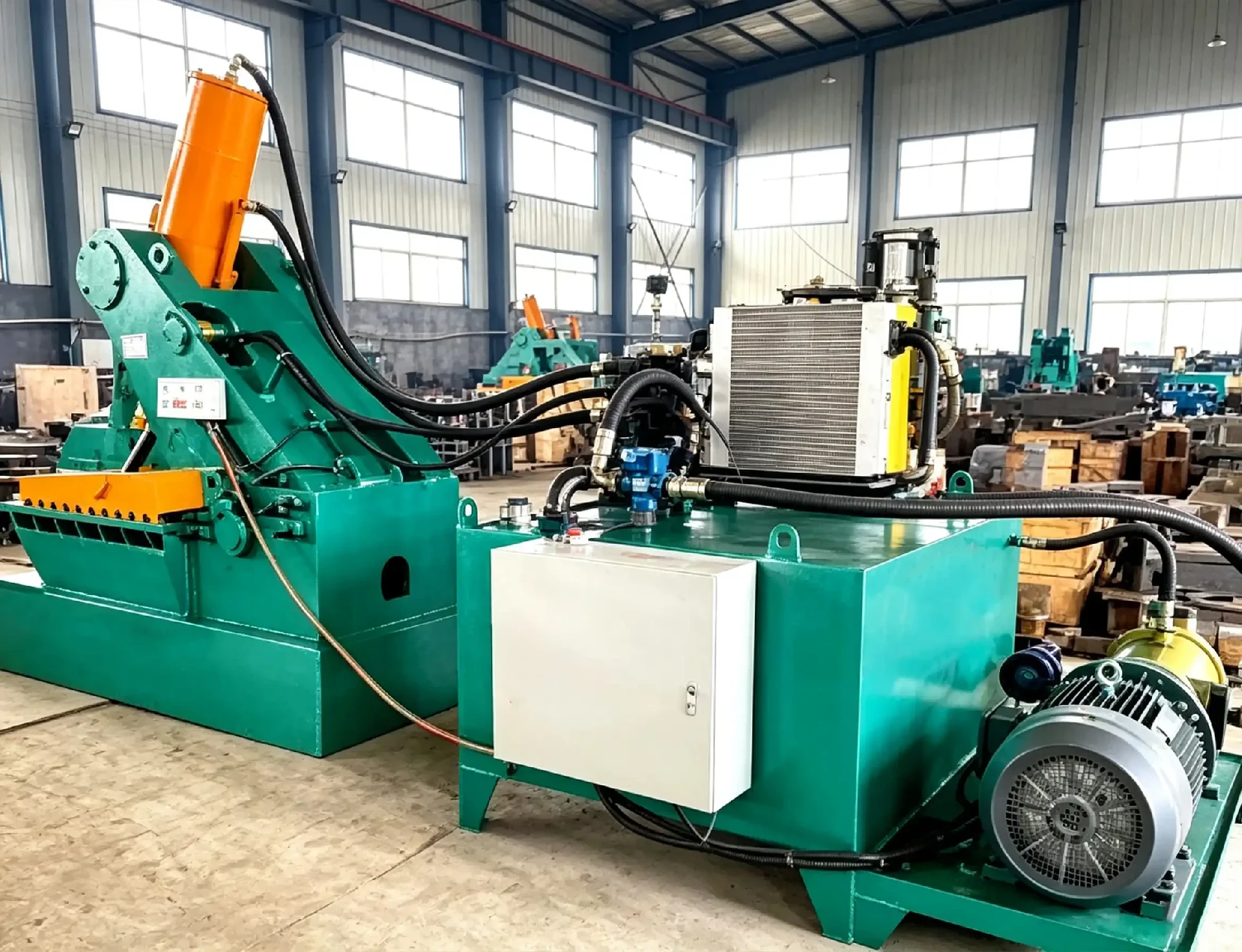

ALLIGATOR SHEAR SERIES

Scrap Metal Shear LD‑450/1200

Output: 20T/D

Product Advantages

1.With gantry frame knife avoider, prevent side knife, enhance the overall stability.

2.With a large capacity cylinder, inverted installation, cylinder from top to bottom spindle cross force, to achieve large mouth shear more powerful.

3.Using fast hydraulic valve block assembly, 12 cuts per minute. Three times the efficiency of the traditional shears.

Applications

Tell us the material type, capacity and working conditions. We will recommend a matching model and send a quote.

REQUEST A QUOTE

Technical Parameters

Item	Parameter	Value
Shearing width		1200mm
Maximum Shearing Force		4500kn
Cutting Frequency		12 cuts/min
Electric Motor	Specification	YX3‑225S‑4/37KW
	Power	37KW
	Rated Speed	1475r/min
Hydraulic Pump	Specification	G250YCY14‑1B
Hydraulic Pump	Nominal Displacement	250 ml/r

Due to continuous product improvement, the above‑mentioned technical parameters shall be subject to the actual product. Our company reserves the right of final interpretation in case of any changes.
